Why Heavy-Duty Locking Frog Clips Are Replacing Standard Leash Clasps: Material Science, Failure Modes and Safety Engineering

The leash clasp is the single critical mechanical link between handler control and canine safety. A sudden failure near traffic, on a crowded trail, or in a busy dog park can have irreversible consequences. Yet for decades, canine hardware has relied on zinc die-cast spring snaps that jam, suffer metal fatigue, and accidentally release under dynamic rotational torque. The heavy-duty directional locking frog clip, engineered with dual spring-loaded release levers and an automatic latching mechanism, represents the gold standard in canine restraint engineering.

1. Traditional Bolt Snaps: Three Inherent Failure Modes

Traditional leash hardware typically incorporates a slide-bolt snap hook invented in the late nineteenth century for lightweight agricultural utility. While adequate for gentle, linear pulling, active companion dogs generate multi-directional shock loads that frequently defeat this primitive spring design:

• Gate Rollout (Rotational Slippage): When an active dog shakes, rolls on the grass, or spins, the harness D-ring twists against the neck of the hook body. This torsional force depresses the spring-loaded slide bolt from the outside, allowing the harness ring to slip completely free of the clasp without human intervention.
• Spring Chamber Contamination and Fatigue: Bolt snaps rely on an internal miniature steel coil spring housed inside a non-sealed cavity. Trail dust, beach sand, and road grit inevitably enter this channel. Once abrasive particles lodge behind the pin, the bolt jams open, leaving the gate unlatched.
• Brittle Cast Zinc Fracture: Mass-produced pet snaps are hot-moulded from low-grade zinc die-cast alloy (Zamak-3). Zinc alloys exhibit low shear tolerance and embrittlement under cold temperatures, often snapping cleanly across the swivel collar during sudden dynamic lunges.

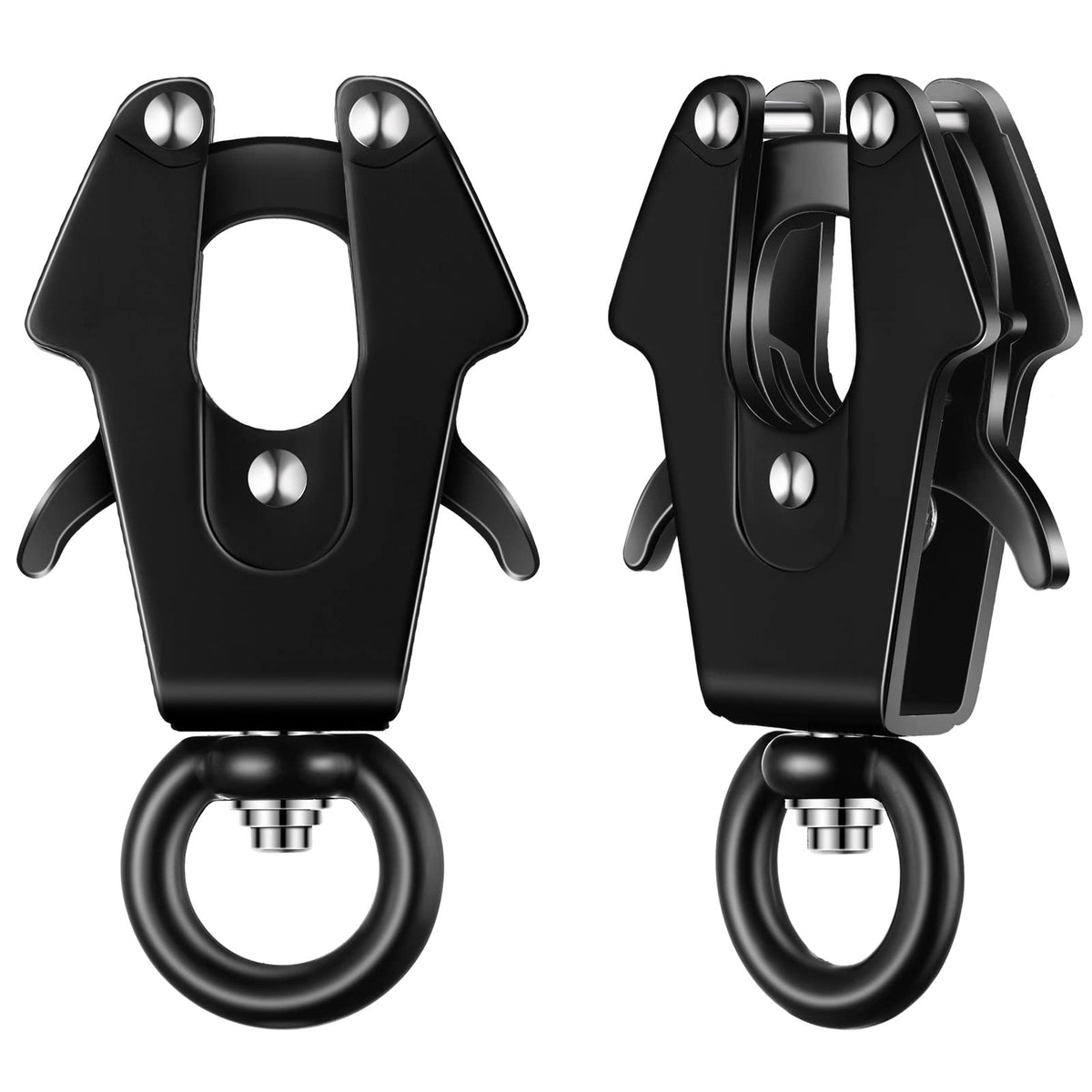

2. Anatomy of the Dual-Action Locking Frog Clip

Originally engineered for professional mountaineering, tactical aeronautical rigging, and personal fall-arrest systems, the frog clip replaces vulnerable single-pin gates with a pair of opposing, interlocking pivoting jaws. The mechanism consists of four distinct engineering components:

3. The Automatic Latching Mechanism: How It Operates

The defining user experience advantage of this mechanism is directional automatic snap-latching. With traditional clasps, a handler must pull back a stiff slide pin with one thumb while awkwardly steering an energetic dog with the other. The frog clip completely streamlines this interaction:

1. Arming the Mechanism ("Turn On"): The handler pinches the two lateral release wings between thumb and index finger. The jaws swing outward into an open V-shape, where an internal spring detent catches them in a cocked position. The handler can now release their fingers—the clip remains stably open on its own.
2. Directional Contact Closure ("Push Forward"): The open clip is directed toward the dog harness D-ring. As soon as the inner apex of the clip meets the metal ring, the D-ring depresses the central contact trigger.
3. Instant Snap Closure ("Lock Off"): Tripping the central trigger unleashes internal dual torsion springs, snapping both curved jaws shut around the D-ring in under fifteen milliseconds. The interlocking teeth mate seamlessly, forming a closed loop with zero gap.
4. Continuous 360-Degree Torsional Freedom: Once locked, the integrated swivel eyelet allows the leash to rotate without twisting the harness or stressing the attachment loop, regardless of how many times the dog circles or pivots.

4. Dynamic Shock Load Physics in Small and Medium Breeds

A common misconception among pet parents is that small and medium companion dogs—such as Miniature Dachshunds, Jack Russell Terriers, Cavoodles, Miniature Schnauzers, Pugs, Boston Terriers, Shih Tzus, Cavalier King Charles Spaniels, and West Highland White Terriers—do not require high-tensile hardware. Biomechanical analysis demonstrates the exact opposite.

Compact dogs possess exceptional power-to-weight ratios and rapid acceleration profiles, reaching top sprint velocities in just two to three strides. When a 10 kg terrier hits the end of a six-foot lead at full sprint, the kinetic energy must be dissipated almost instantaneously. Using the impulse-momentum theorem:

Standard zinc die-cast bolt snaps are rated for static loads between 35 kg and 50 kg, and their lateral failure threshold is even lower. A 157 kg-force dynamic impulse exceeds this threshold by more than 300%, causing the zinc body to fracture or the slide gate to blow outward. The heavy-duty locking frog clip, crafted from high-strength aerospace-grade aluminium alloy and stainless steel pivot pins, boasts a rated breaking capacity exceeding 18 kN (over 1,800 kg-force), delivering a robust 10:1 safety factor against extreme dynamic shock loading.

5. Direct Hardware Comparison: Frog Clip vs Traditional Alternatives

To evaluate how the locking frog clip compares against other clasp formats commonly marketed to pet owners, we assess five key functional criteria:

6. Safe Pairing Recommendations for Small Companion Breeds

To maximise the safety of active small and medium dogs, hardware pairing should be approached holistically:

• Attach to Ergonomic Chest Harnesses: For breeds prone to tracheal collapse or intervertebral disc disease (IVDD)—such as Miniature Dachshunds, Pugs, Boston Terriers, and Cavalier King Charles Spaniels—never clip high-tensile hardware directly to a narrow neck collar. Pair the frog clip exclusively with a wide, padded Y-shaped thoracic harness that safely distributes kinetic energy across the ribcage and sternum.
• Routine Pivot Lubrication: While aviation alloy is immune to rust, rinsing the clip in fresh water after beach walks and applying a micro-drop of food-grade silicone lubricant to the stainless steel pivot pins once quarterly ensures instantaneous trigger action for years.
• Auditory Confirmation on Latch: Always listen for the crisp, dual-jaw snap when docking the clip onto your dog harness D-ring. The audible click confirms that both interlocking teeth have closed into full mechanical lock.
